Part number: EP1305LV BLACK 50ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

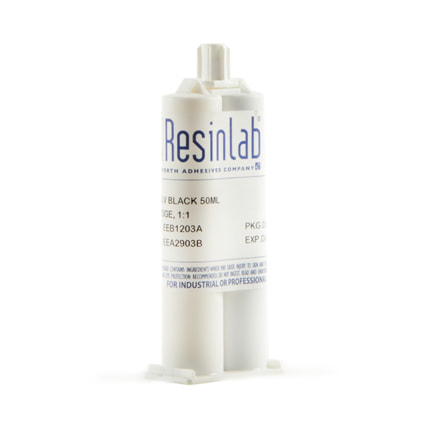

ResinLab EP1305LV Black is a two component, room temperature or heat curing, epoxy casting resin that is used for bonding metal and PVC. It is free flowing, good wetting, self leveling, good air release, and resistant to bases, acids, water, and most organic solvents. 50 mL Cartridge.
| Typical Use: | It has good wetting to most surfaces and is free flowing to penetrate components and give good self-leveling and air release. It has very good resistance to water, acids and bases, and most organic solvents. |
| Chemical Composition: | Epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ 25 °C; 2h @ 65 °C; 1h @ 100 °C |
| Dielectric Strength: | 410 V/mil |
| Elongation: | 12% |
| Flash Point: | Part A: 200 °C; Part B: >99 °C |
| Hardness: | 75 D |
| Mix Ratio: | 1:1 by volume; 1.15:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 2,100 |
| Specific Gravity: | Part A: 1.15; Part B: 1.00; Mixed: 1.07 |
| Tensile Strength: | 3,500 psi |
| Thermal Conductivity: | 0.20 W/mK |
| Viscosity: | Part A: 12,000; Part B: 36,000; Mixed: 28,000 |
| Volume Resistivity: | 7.8 x 10^14 ohm-cm |
| Working Time: | 6 to 10min |
