Part number: EN-21 QT KIT
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

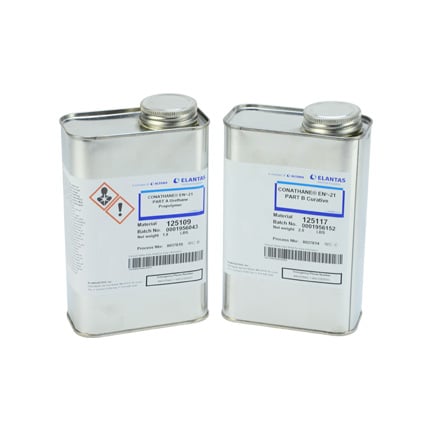

ELANTAS PDG CONATHANE EN-21 Polyurethane Resin System is a two component, non-MBOCA system that is used for casting, embedding, potting, and encapsulation of electrical assemblies and power devices. It is recommended for potting print circuit boards, voltage regulators, transformers, rectifiers, and inductors. It cures at room temperature and offers good electrical properties, low viscosity, low toxicity, low shrinkage, and low exotherm. It is resistant to moisture and reversion. 1 qt Kit.
| Typical Use: | CONATHANE EN-21 is ideal for use in potting transformers, coils, reed and mercury switches, inductors, solid state ignition systems, voltage regulators, ballasts, micro-circuits, rectifiers, and printed circuit assemblies. |
| Brand: | CONATHANE |
| Color: | Amber |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 7d @ 25 °C; 4h @ 80 °C |
| Dielectric Strength: | 650 V/m |
| Elongation: | 155% |
| Flash Point: | >93 °C |
| Hardness: | 80 A |
| Mix Ratio: | 100:116 by weight |
| Specific Gravity: | Mixed: 1.07 @ 25 °C |
| Tensile Strength: | 2,000 psi |
| Thermal Conductivity: | 7.1 x 10^-4 |
| Viscosity: | Mixed: 2,000 @ 25 °C |
| Volume Resistivity: | 7.2 x 10^14 ohm-cm @ 25 °C |
| Working Time: | 40min @ 25 °C |
-
