Part number: EN-2521 BLACK GAL KIT
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

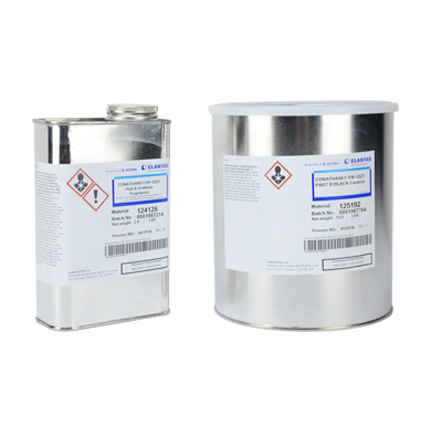

ELANTAS PDG CONATHANE EN-2521 Polyurethane Resin System Black is a two component, filled system that is used for potting and encapsulation of transformers, circuitry, coils, and modules. It cures at room to elevated temperatures and offers good electrical properties, low exotherm, low shrinkage, and low stresses. It is resistant to water, thermal shock, aliphatic hydrocarbons, mild acids and bases. 1 gal Kit.
| Typical Use: | CONATHANE EN-2521 is recommended for potting applications where exceptional performance in the temperature range of -65C to 130C is required. It is particularly useful in the encapsulation of modules, strain sensitive circuitry, transformers, and coils. |
| Brand: | CONATHANE |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 7d @ 25 °C; 16h @ 80 °C |
| Dielectric Strength: | 585 V/m |
| Elongation: | 39% |
| Hardness: | 90 A |
| Mix Ratio: | 17:100 by weight |
| Tensile Strength: | 1,025 psi |
| Thermal Conductivity: | 1.55 x 10^-3 |
| Viscosity: | Mixed: 4,500 |
| Volume Resistivity: | 6.8 x 10^13 ohm-cm |
-
